MODULAR



MIXER++

Multifunctional mixer 4 inputs to a stereo output. Compatible with AUDIO and CV signals.

VERSION 2 AVAILABLE



The MIXER ++ module is a mixer "all in one" in  a small size (12HP).

Download what's new in Version 2

- 4 mono inputs including 1 mono or stereo (switching depending on the connection used, can be used return stereo effect)
- 1 main level potentiometer (logarithmic curve)
- 1 auxiliary mono output, with choice of output level via jumper on the back - new -
- 1 stereo output on 3.5mm jack

Each channel comprises:

       - 1 level potentiometer (linear curve)
      - 1 mute button (with bicolor led green / red satut) to            activate / desactivate the channel
       - Auxiliary send pre or post level
       - 1 pan potentiometer (with central detent)

- Connection connector of a second Mixer ++ (connection cable supplied during a second purchase of Mixer ++). In this case, the output of the first Mixer is sent to the output of the 2nd Mixer. You thus have 8 channels, including two stereo as well as two independent auxiliary sendings, all "summed" on the stereo output of Mixer n ° 2 - new -


- Parallel connection of the dedicated power supply to supply the optional "VUMETER" module. Also connected on the "Link to 2d Mix" connector. ", This module allows:
         - view the stereo output on a double 12 led's meter
         - separate the stereo mini jack output of the Mixer ++ into two mono L & R mini jack outputs (the "vumeter" module will be available within 3 to 4 weeks. Note that this module can also be used without the Mixer, with d 'other mono or stereo audio modules)
- new -

Accepts audio or CV signals.

Available with black or white panel.

Price: 155 € (excluding shipping costs)

Payment by paypal, sending with tracking number.



Specifications :

Size 12HP, epoxy panel 1,6 mm.

Deep : 36mm (skiff friendly).

PCB in epoxy FR4 dual layer, 1,6 mm. Surface finish HASL.

Components tested and assembled by hand, in Brittany, France.

Available as an assembled Module, no kit.

In the box : M3 & nylon nuts.

Consumption : ~ 12 mA (+12V) / ~ 12 mA (-12V).



MANUAL

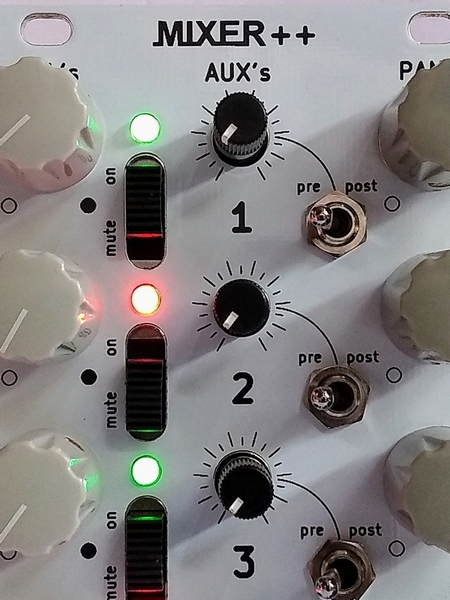

White panel :

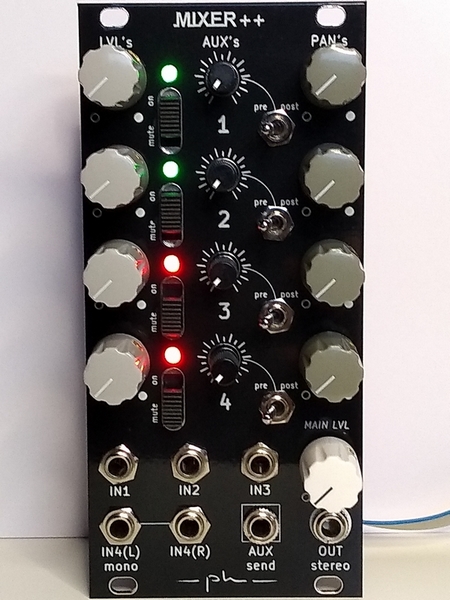

Black panel :

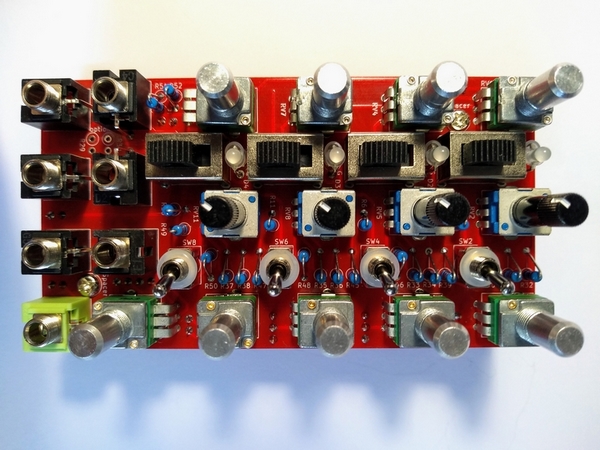

Selected and tested components :

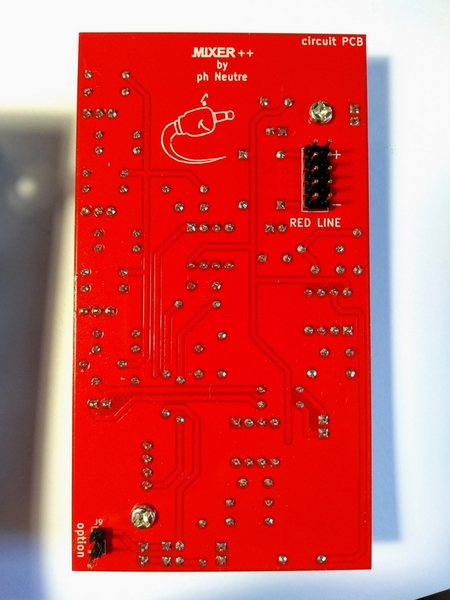

Signaling of connection direction of ribbon cable :

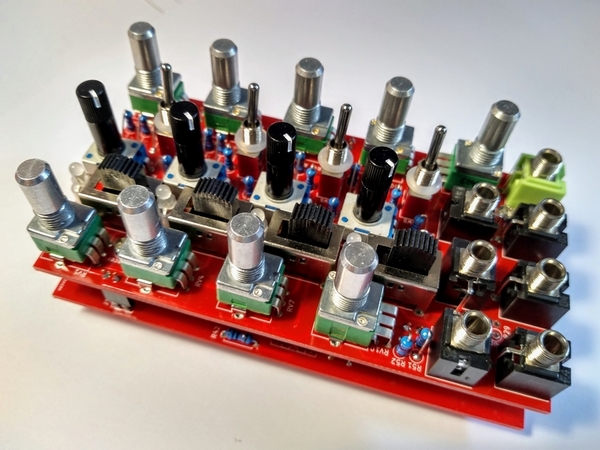

Careful assembly by hand :

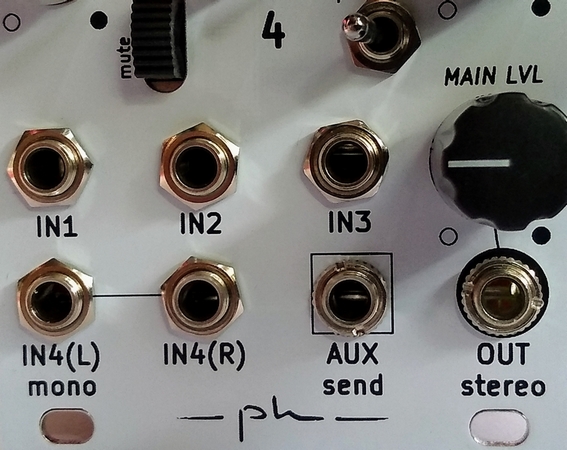

Sober and pleasant visual:



To order, please contact me by clicking here :

ACHETER (BUY)

The terms of payment, delivery times and shipping costs, will be detailed by return mail.

The payment will be only in euros (€) and can be done by paypal or check for metropolitan France. International delivery possible with tracking number. Learn more about delivery terms or contact me...
